Thermal insulation

What is thermal insulation?

Thermal insulation is a process through which the exchange of thermal energy (heat) between two physical systems (bodies or environments) is carried out through the interposition of a non-energy conducting material or material with insulating properties.

Any material that minimizes the transmission of heat (thermal exchange) between two physical systems may be considered thermal insulation in accordance with their conductivity coefficient (K) – the quantity of heat transferred per unit of length under a temperature differential (W/m.K). (heat exchange) between two physical systems can be considered as thermal insulation, according to their coefficient of conductivity (K) - amount of heat exchanged per unit of length under a temperature differential (W / mK).

Isolamento Térmico

Advantages of Thermal Insulation

  • Economy in electrical energy consumption;
  • Temperature control and thermal comfort;
  • Preservation, storage, and handling of products;
  • Thermal stability;
  • Protection of structures.

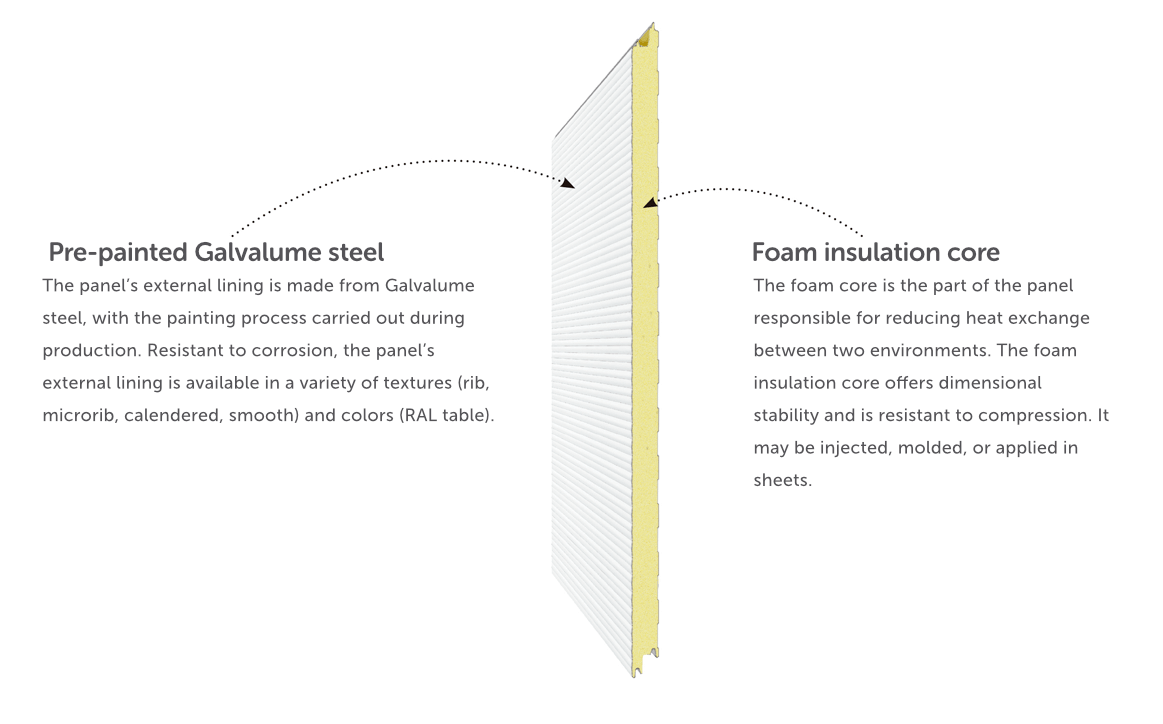

Internal Lining

Galvalume RAL 9003 RIB40 Steel White(Roofing, Cold Stores, Façades)
Galvalume RAL 9003 RIB40 Steel White
(Roofing, Cold Stores, Façades)
Galvalume RAL 9003 RIB100 Steel White (StyroPainel)
Galvalume RAL 9003 RIB100 Steel White
(StyroPainel)
Galvalume RAL 9003 Steel Smooth (Cleanrooms)
Galvalume RAL 9003 Steel Smooth
(Cleanrooms)
Galvalume Steel Natural(Roofing)
Galvalume Steel Natural
(Roofing)
White Aluminum Film(Roofing)
White Aluminum Film
(Roofing)

External Lining

Galvalume RAL 9003 RIB40 Steel White(Roofing, Cold Stores, Façades)
Galvalume RAL 9003 RIB40 Steel White
(Roofing, Cold Stores, Façades)
Galvalume RAL 9003 RIB100 Steel White (Cold Stores)
Galvalume RAL 9003 RIB100 Steel White
(Cold Stores)
Galvalume RAL 9003 Micro RIB Steel White (Façades)
Galvalume RAL 9003 Micro RIB Steel White
(Façades)
Galvalume Steel Natural(Roofing)
Galvalume Steel Natural
(Roofing)
Brushed Stainless Steel
Brushed Stainless Steel

PIR X Other systems

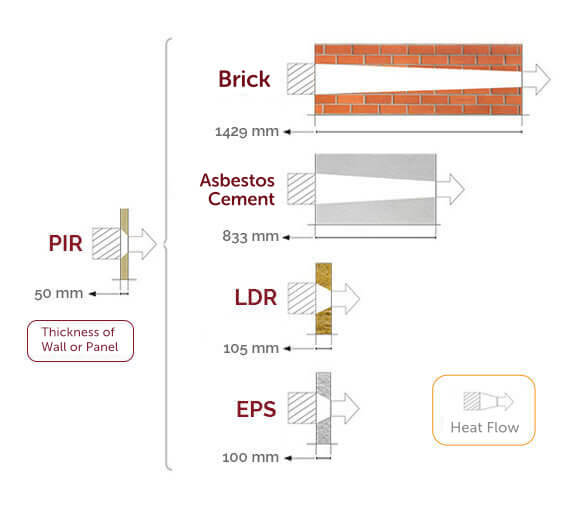

A wall of bricks with a thickness of 1429 mm is needed to reach the same proportion of insulation provided by a single 50 mm PUR/PIR panel.

PUR/PIR

Advantages of PIR

  • Excellent thermal insulation properties (low thermal conductivity coefficient = 0.021 W/m.K);
  • High mechanical resistance (compression, bending, temperature, fatigue);
  • Performs well under exposure to fire, in accordance with international standards;
  • Chemical and physical stability;
  • Resistance to infestations of rodents and insects, as well as fungus;
  • Easy to apply;
  • Complies with Montreal protocol.
